AWS A5-10 ER4047
| Al | Si | Fe | Cu | Mn | Mg | Zn | Ti | Other |
|---|---|---|---|---|---|---|---|---|
| Balance | 11.0-13.0 | 0.6 | 0.3 | 0.15 | 0.1 | 0.2 | 0.15 | ≤0.15 |
Melting range: 577-582 °C
Density: 2.65g/cm3
Tensile strength: ≥130 N/mm²
Elongation:≥ 60 %
Brazing， TIG , MIG
This is a type of product which can be adopted in welding all kinds of forging and casting or extruded shape aluminium alloys.And it has advantages of low melting point and good fluidity which make the distortion after welding avoided.
Product usage: jointing or overlay light alloy processing

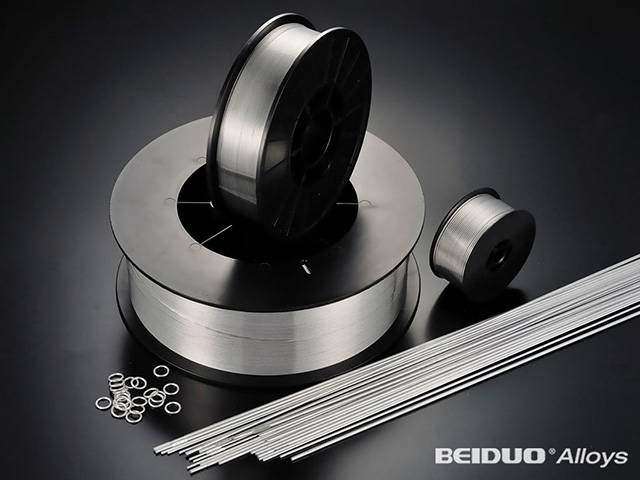

Rods (mm): φ1.6；2.0；2.4；3.2；4.0；5.0；6.0
Rod packagings: (Boxes)5/10kg
Wires (mm): φ0.8；0.9；1.0；1.2；1.6；2.0；2.4
Spools: S100/0.5kg(1lb) S200/2kg S3006kg-7kg(16lb) S360/20kg
Other dimensions are available upon request
