Melting range: 1030-1050 °C
Tensile strength: 430-540 N/mm²
Elongation: 30 %

Hardness(Brinell): 130-150HB

TIG , MIG

Argon

CuAl8Ni2Fe2Mn2 used for copper aluminium alloys with Ni and Fe addition. Weld cladding on cast iron materials and steel. Mixed joints of aluminium bronze steel.It is resistant to seawater and cavitation resistant. Good suitabilizy for simultaneous stress strain caused be seawater, cavitation and erosionIt is a nickel-aluminum bronze alloy used to weld cast and wrought nickel-aluminum bronze. It has excellent resistance to corrosion, erosion, and cavitations in salt or brackish water. Its applications include, hip fittings, ship propellers, power plant valves, piping systems, intake screens, oil recovery pumps, and propeller gear housings.

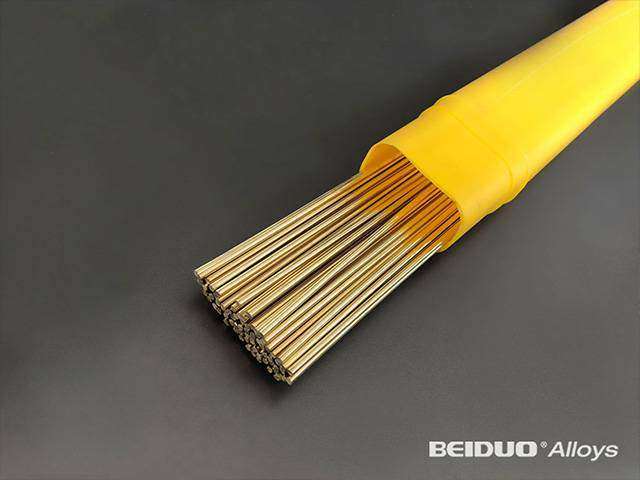

Rods: φ1.5-5.0mm  Max. Length: 1000mm

Wire:  φ0.8, 1.0, 1.2, 1.6mm on spools D300

Other dimensions are available upon request
