AWS A5.8: RBCuZn-C
Cu | Sn | Si | Fe | Mn | Zn | Other |
---|---|---|---|---|---|---|
56-60 | 0.8-1.1 | 0.04-0.15 | 0.25-1.20 | 0.01-0.5 | Balance | 0.5 |
Acetylene torch, induction and resistance heating
Flux: Borax, Borax acid and agglomerant.
Brazing alloy with good flowing properties, hardly sensitive to overheating.
Suitable for gap brazing and coating of steel, cast iron, malleable cast iron,
as well as copper and copper alloys with a solidus of > 900 °C.

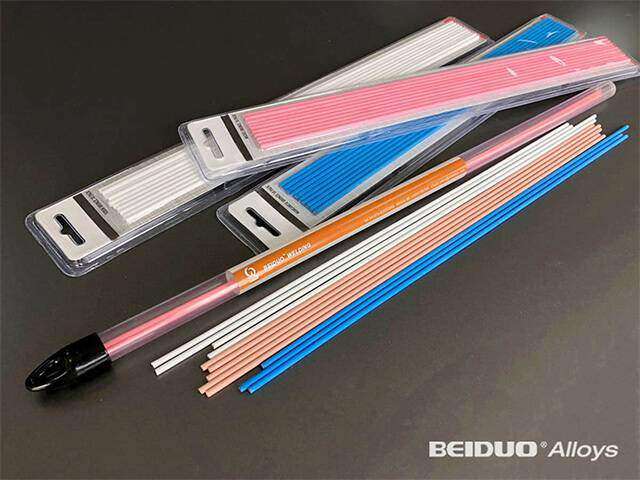

Rods: φ1.5-4.8mm Length: 300-1000mm
Other dimensions are available upon request
Working temperature: 910-955 °C
Melting range: 866-888 °C
Density: 8.4 g/cm³
