CuMn12Ni3
EN ISO 3677: B-Cu85MnNi-970/990
| Cu | Mn | Ni |
|---|---|---|
| 85.0 | 12.0 | 3.0 |
Working temperature: 990 °C
Melting range: 970 - 990 °C
Specific gravity: 8.4 g/cm3
Tensile strength: 390 N/mm2
Brazing
Manganese bearing copper based alloy for capillary brazing of alloyed and unalloyed steel. Well suited for hard metal/ steel joints.

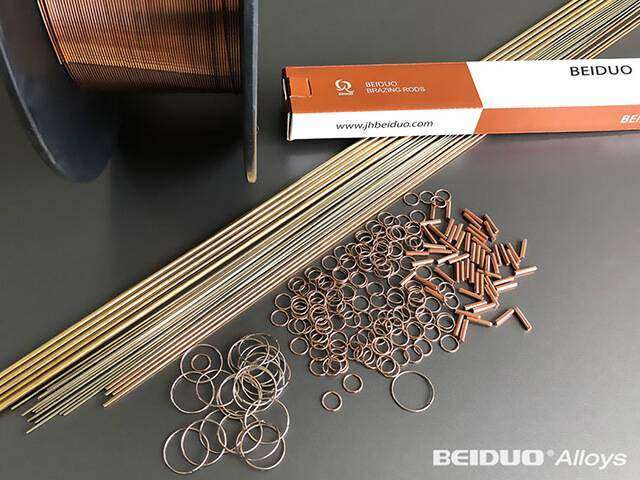

Rods: φ1.5-5.0mm Max.Length: 15mm-1000mm
Wire: φ1.2, 1.6mm on spools or coil wire
Other dimensions are available upon request
