Hi-Temp 870
Cu87Mn10Co3
EN ISO 3677: B-Cu87MnCo-980/1030
| Cu | Mn | Co | Mg | Al | P | Si | Pb | Other |
|---|---|---|---|---|---|---|---|---|
| Balance | 9.0-11.0 | 2.5-3.5 | 0.005 | 0.002 | 0.008 | <0.002 | <0.02 | 0.30 |
Working temperature: 1020 °C
Melting range: 980 - 1030°C
Specific gravity: 8.8 g/cm³
Brazing
Processing through controlled atmosphere furnace should be applied.
The material can be used for brazing any steels, nickel and nickel based alloys. High-temperature strength. Free-flowing. For carbides, stainless steels, tool steels, and nickel alloys. Excellent wetting of carbides, stainless steel and copper. It suits well to carbide/steel applications where high mechanical stresses are encountered (i.e. mining or road construction).

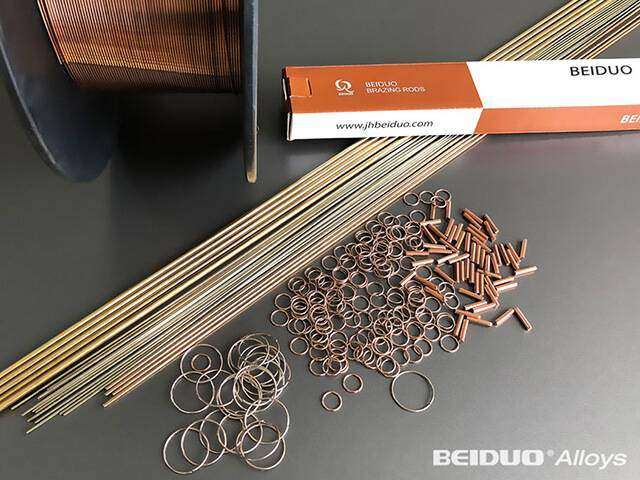

Rods: φ1.5-5.0mm Max.Length: 15mm-1000mm
Wire: φ1.2, 1.6mm on spools or coil wire
Other dimensions are available upon request
