AWS 5.14 ERNi-1
| C | Mn | Fe | Si | Cu | Ni | Other |
|---|---|---|---|---|---|---|
| ≤0.15 | 1.00 | 1.00 | 0.75 | 0.25 | 93.00 | 0.50 |
Tensile strength: 65,000 PSI
Yield Strength: 37,000 PSI
Elongation: 27 %
Filler metal used for MIG, TIG, Argon arc welding of nickel.
It is intended for welding wrought and cast forms of commercially pure nickel alloy to itself using the GTAW, GMAW, SAW, and PAW processes. The filler metal contains sufficient titanium to control weld-metal porosity with these welding processes.

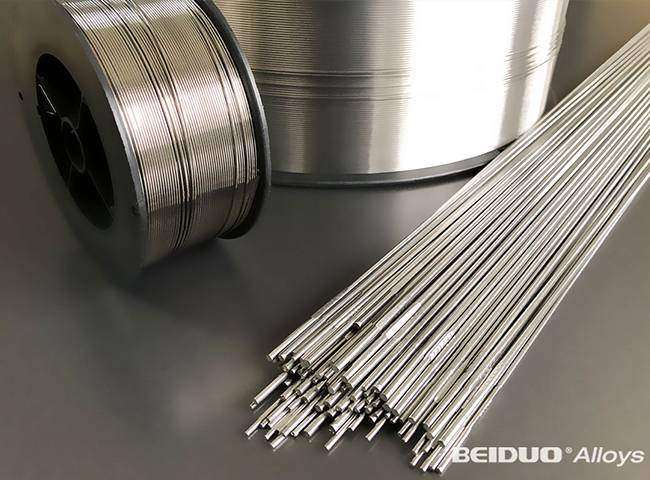

Rods: φ1.5-5.0mm Max.Length: 1000mm
Wire: φ0.8，1.0，1.2，1.6mm on spools D300 Strip
Other dimensions are available upon request
