ERNiCU-7

  • AWS A5.14:    ERNiCu-7

Chemical Composition: %

CMnFeCuSiAlSTiNiOther
≤0.154.02.5Balance1.251.25≤0.0151.5-3.062-690.50

Mechanical and physical properties

  • Tensile strength: 700 Mpa

    Yield Strength:  300MPa
    Elongation: 30 %

Welding process

  • TIG , MIG

Description and Applications

  • The nominal composition of weld metal of this classification is 65 Ni, 30 Cu, 3 Mn, 2 Ti. Filler metal of this class is used for welding nickel-copper alloy (ASTM B127, B163, B164, B165, all of which have UNS Number N04400) to itself using the GTAW, GMAW, SAW and PAW processes. The filler metal contains sufficient titanium to control porosity with these welding processes.

Availability

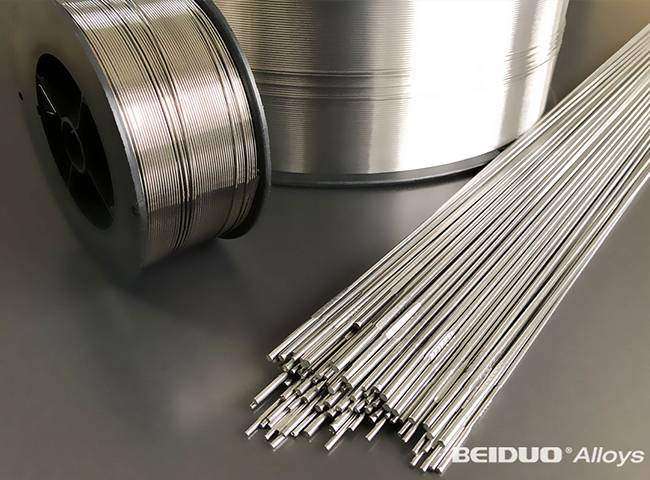

  • Rods: φ1.5-5.0mm  Max.Length: 1000mm

    Wire:  φ0.8,1.0,1.2,1.6mm on spools D300

    Other dimensions are available upon request
