BCuP-6

  • AWS A5.8           BCuP-6

    DIN EN1044         CP 105

    DIN 8513            L-Ag2P

    ISO 17672           CuP 279

Chemical Composition: %

CuPAgOther
Balance6.8-7.51.8-2.20.05

joining process

  • Acetylene torch, induction and resistance heating

Description and Applicaiton

  • Copper-phosphorus alloy with low silver content. This alloy has good gap filling properties and it is well suited to bridge wide gaps. Suitable for gap brazing of copper and copper alloys. Approved by DVGW-worksheet GW 2 for copper pipes. Joint-brazing at working temperatures between -60 °C and +150 °C*. Do not use in sulphurous environment and on Fe- and Ni-alloys

Availability

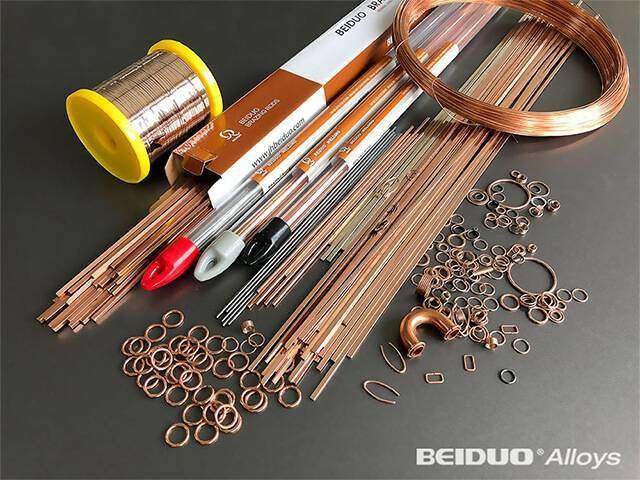

  • Rods: φ1.5-5.0mm  Length: 50-1000mm

    Wire and Flat wire:  φ0.8, 1.0, 1.2, 1.6mm

    Other dimensions are available upon request

Mechanical and physical properties

  • Working temperature: 740 °C
    Melting range: 645- 825 °C
    Specific gravity: 8.1 g/cm³
    Tensile strength: 250 N/mm²
    Elongation: 5 %
