AWS A5.7: /
BS EN14640: CuSn10
ISO24373: CuSn10MnSi
| Cu | Fe | Mn | Si | Sn | Zn | Pb | Other |
|---|---|---|---|---|---|---|---|
| Balance | / | 0.2-0.35 | 0.2-0.3 | 9.0-10.0 | ≤0.05 | ≤0.02 | ≤0.5 |
Melting range: 887-1020 °C
Tensile strength: 290N/mm²
Elongation: 12-16 %
Hardness(Brinell): 115HB
Density: 8.7g/cm³
TIG , MIG
Shielding Gas: Argon
Recommended for the joining welding of copper with Cu-Sn alloy.Best for the joining welding of Cu-Zn alloy with steel.Pre-heat suggested for the large size products, and pulsed arc welding is recommended for multilayer on steel.

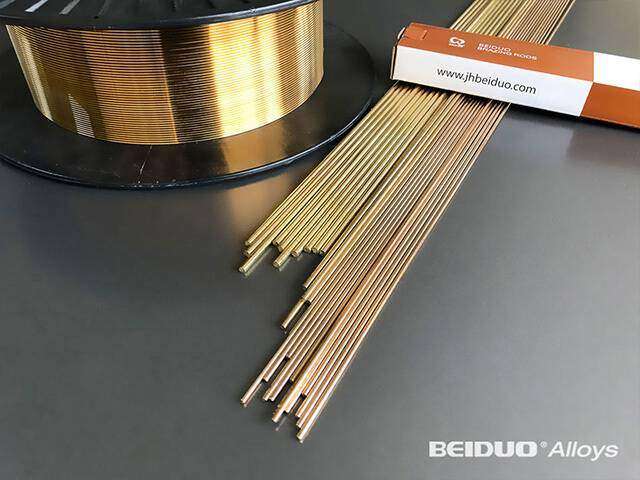

Rods: φ1.5-5.0mm Max.Length: 1000mm
Wire: φ0.8, 1.0, 1.2, 1.6mm on spools D300
Other dimensions are available upon request
